Started with a thin coat of Tru-Oil rubbed into the stock, but it wasn't laying down well.
Thinned the Tru-Oil with mineral spirits. About a 50/50 mix.
This burnished into the wood much easier. Was able to get about two coats per day.
The end grain filled beautifully.
After several coats, I rubbed the stock down with Birchwood Casey Stock Sheen and Conditioner to remove the gloss and high spots in the finish. I then switched to Arrow wood finish and quickly applied several super thin coats. This consisted mostly of rubbing a few drops of oil into the stock with the heel of my hand.

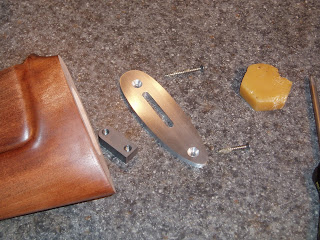

With a finish on the stock, it was time to fit the base plate that bridges the gap between the stock and the buttplate.
Some dykem on the plate shows my scribed line.
The belt sander let me grind to the line. I kept a bucket of water at hand and dunked the plate whenever it got too hot.
Eyeballed the angle at the heel and toe. Good enough.
Pulled the plate one last time...
...and added the threaded nut into the stock.
Then screwed the base plate back on and added the adapter.
Like so.
Attached all the buttplate components to the adapter. The three wide lower blocks will likely need additional fitting.
Set the accessory rail in place and ran the screws home.
Added a simple handstop I had waiting in the parts box.
Last look back. Here's the stock just before I started this whole mess.

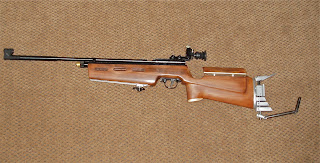

And now...
Well, it's done for now. No doubt, there will be additional tweaks as I shoot the rifle. Did a quick two minute set up to get the cheek piece set and the vertical height of the buttplate more or less dialed. It now comes to shoulder and immediately aligns my eye to the diopter without any neck strain. I can see where the blocks on the buttplate will need to be narrowed slightly. I expect that I'll eventually taper them, too.
Next up is a FWB 124D tear down and rebuild. I've already got most of the images for the first installment. I should have a post ready to go in a couple days.
Please check back in.
